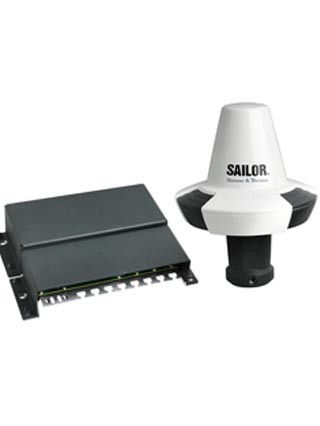

The Thrane & Thrane SAILOR 6140 mini-C Maritime is a sophisticated, dedicated Vessel Management System (VMS) and tracking terminal. It supersedes the well established SAILOR 3026M/S, which is used aboard thousands of professional fishing vessels worldwide, to meet mandatory requirements for the carriage of satellite tracking equipment. The system is a single, self-contained and sealed terminal, housing both antenna and transceiver. This design approach has proven to be rugged and reliable, especially for use aboard the harsh environment of a professional fishing or offshore vessel. With the terminal’s 50 channel GPS module and omni-directional antenna, satellite fix and position are ensured even under the most adverse conditions. Since the mid-90’s Thrane & Thrane has delivered more than 25,000 Inmarsat-C and mini-C terminals for monitoring solutions all over the world and the next generation SAILOR 6140 mini-C Maritime is based on the unmatched experience Thrane & Thrane has in developing innovative satellite tracking systems.
Included in the Package:
SAILOR mini-C 6140 Maritime System
*YOU SHOULD ASK A QUOTATION when you need to buy particular accessories; for example an antenna and cable so that we can give you the correct cable to connect your antenna to your device with all adapters that you may need.
•Data Reporting – A standard data report contains information about latitude, longitude, speed, course, time, date as well as the SAILOR mini-C identity number. However, the data report package can be tailored to suit specific needs.
•Vessel Monitoring System – VMS provides a number of advanced tracking functions giving the user greater control and eliminating unnecessary reporting.
•GeoFencing – With GeoFencing you can divide relevant sea areas into a range of geographical zones meaning you can define special areas of interest where specific reporting intervals come into effect and also be alerted when your vessel is out of its designated zone. With increased memory capacity the terminal is now able to hold a multitude of different zones and programs. With the optional TCU programming for advanced monitoring is available with up to 14 I/O pins or 7 output pins, depending on configuration.
•CAN-BUS interface (easy installation)
•GLONASS option opening new markets.
•Reuse of SAILOR 3042E Alarm Panel on the SAILOR 6150 Distress System
•TCU provides status information (power, GPS fix, log-in)
•Built in 50 channel GPS module for increased precision
•Increased zone / geo-fencing capabilities
•General specifications: Meets Inmarsat maritime specifications and IMO LRIT requirements
•Inmarsat Type Approval 4TT097
•TE RMINAL UNIT SPEC IFICATIONS
•Operating frequencies: Rx Frequency Band: Rx: 1525 - 1545 MHz, Tx Frequency Band: Tx: 1626.5 - 1646.5 MHz
•GPS module: 50 channel
•Terminal interface: NMEA2K DeviceNet Mini-style, Male
•ANTENNA UNIT SPECIFICATIONS
•G/T: -23.7 dBk at 5° elevation
•EIRP: Min. 7 dBW at 5° elevation
•Antenna elevation: -15° to 90°
•Absolute power supply range: 9 - 32 VDC
•Nominal power input: 15 VDC
•Power consumption (typical) Rx: 1.85 W @ 15 VDC, Tx: 22 W @ 15 VDC
•TERMINAL CONTROL UNIT SPECIFICATIONS
•Interface options: CAN interface NMEA2K mini, RS-232, LAN interface RJ45
•DIMENSIONS AND WEIGHT
•Mini-C Terminal Diameter: 170.5 mm
•Height: 145 mm (without pole mount)
•Weight: 1,1 Kg
•Terminal Control Unit: 239 mm x 172 mm x 54 mm
•Weight: 0,8 Kg
•ThraneLINK is a sophisticated communication protocol that connects the SAILOR products in a network, offering important new opportunities to vessels. It provides facility for remote diagnostics and enables access to all the SAILOR products from a single point for service. This results in optimized maintenance and lower cost of ownership because less time is needed for troubleshooting and service. Installation is made easier as ThraneLINK automatically identifies new products in the system. The uniform protocol is an open standard which provides a future proof solution for all vessels
