VSAT FASTSAT 500 Marine 1,5 meter Autopointing

VSAT-FASTSAT-500





Usage:
Maritimo
Dienstleistungen:
Voice
Data
Fax
SMS
E-mail

Preis: 60.000,00 USD + MwSt.

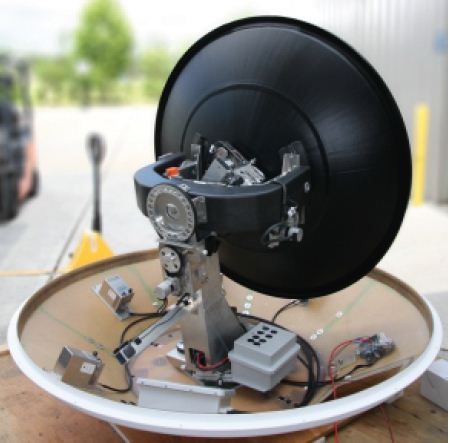

The BB150 Ku-Band is the largest model in the Broad Band product range of antennas, designed for top performance, high-reliability and high-bandwidth applications such as cruise ships, live video streaming from heavy-duty Oil&Gas Offshore Operation Support Vessels (OSV).

Available in single or combined bands: C, Ku, C/Ku, X, X/Ku, Ka, X/Ka, Ku/Ka.


The lightweight construction gives exceptional tracking agility, reduced stress on belts and motors for maximum operational life and minimum maintenance.

Carbon-fiber construction is immune to salt, oxidization, thermal excursions and humidity.

This is the first antenna in the world to include all electronics into the radome, without any additional parts inside the boat.

Thanks to a powerful embedded antenna controller (ARCU), the configuration interface is entirely web-based, and can be accessed locally or remotely through the satellite link or other backup connections. The ARCU also collects alarms and diagnostic information to a central server.

Extensive diagnostics of a single antenna or the entire fleet is available via an intuitive web-based server that collects real-time and historical performance information from all ships.

The antenna is fully OpenAMIP certified and can operate Automatic Beam Switching to select the correct satellite according to the geographic and coverage areas.

Dual-antenna configuration is fully supported, using the additional intelligent switchbox.

The antenna can be equipped with different BUC types according to the required band-width and link budget.

Included in the Package:
VSAT FASTSAT 500 Marine 1,5 meter Autopointing
Preis: 60.000,00 USD + MwSt.
USD 72000.00 (VAT included)
(USD 60000.00)

*SIE SOLLTEN einen Kostenvoranschlag zu beantragen, wenn Sie bestimmte Zubehörteile kaufen müssen, zum Beispiel eine Antenne und Kabel, so dass wir Ihnen das richtige Kabel für Ihre Antenne auf Ihrem Gerät mit allen Adaptern, die Sie benötigen.


Features:
  • Designed for heavy-duty and high-bandwidth applications
  • Carbon-fiber dish with honeycomb sandwich
  • Integrated Antenna controller - no below-deck equipment required
  • Integrated DVB-S2 and narrowband tuner
  • Dual-antenna configuration with the additional intelligent switchbox
  • Integrated 2G-3G-WIFI modem for backup or maintenance link
  • Web-based configuration from a local or remote web browser for easy commissioning or reconfiguration
  • Extensive diagnostic via centralized database for real-time or historical display
  • Fully OpenAMIP (iDirect) certified and capable of Automatic Beam Switching (Intelsat ABS)
  • A powerful embedded antenna controller (ARCU) collects alarms and diagnostic information to a central server
  • Extensive diagnostics of a single antenna or the entire fleet is available via an intuitive webbased server that collects real-time and historical performance information from all ships
Specifications:
Radiofrequency:
  • Reflector: 150cm ADE carbon fiber
  • Tx?Gain: 43.7dB @ 14.250 Ghz (no radome)
  • RF TX path loss between BUC and Dish: 0.5dB
  • BUC type: 4W Anatel type approved - 8W New Japan Radio (optional) - 16W or 25W Codan (optional)
  • Rx Gain: 42dB @ 12.0 Ghz (no radome)
  • G/T: 22.0dB/K @ 25° elevation (with radome)
  • LNB low noise figure: <0.6dB with Swedish Microwave - Double quad LNB compliant (DiSEqC protocol)
  • Polarized feed: selectable from BBController software or OpenAMIP - Linear Cross?pol - Co?pol
  • Radome loss: <1dB TX and RX Ku band optimized

Mechanic:
  • Radome diameter: 175 cm
  • Antenna weight: 95Kg (with 10W BUC)
  • Operating temperature: ?10°C/+60°C
  • Antenna power: 24Vcc – 15A or 110?230Vac (ext power supply)
  • Rotary joint: Combined slip?ring for Ethernet and power, plus coaxial 2 way rotary joint for RF signals
  • Tracking accuracy: <0.1° with external gyro connected / <0.2° without external gyro
  • Pedestal type: 4 axis: azimuth, elevation, cross level, polarization skew
  • Mechanics: 70% carbon fiber - 30% aluminum

Ship Motion maximum angles:
  • roll +/- 30°
  • pitch - 20° / +100°
  • unlimited azimuth movement
    roll +/? 30°
    pitch ?20° / +100°
    unlimited azimuth movement roll +/? 30°
    pitch ?20° / +100°
    unlimited azimuth movementroll +/? 30°
    pitch ?20° / +100°
    unlimited azimuth movementroll +/? 30°
    pitch ?20° / +100°
    unlimited azimuth movementroll +/? 30°
    pitch ?20° / +100°
    unlimited azimuth movement
Other:
  • GPS: all in view 12 channels internal
  • Internal 3?axis gyro sensor: 9 sensors with Kalman filter
  • Tracking possibilities: geostationary satellites / inclined orbit satellites
  • Lock sources: Internal Broadband DVB?S2 Tuner / Internal Narrowband Tuner / External modem lock / AGC carrier level

BBController software:
  • OpenAMIP compliant
  • HTTP/HTTPS access to the antenna interface
  • Remote software update
  • Connection to iDirect modem through
  • OpenAMIP or serial cable
  • Ethernet Gyrocompass HDT input

Modem capability:
  • iDirect X5 (default)
  • Hughes
  • Gilat Technology (optional)

Extra Features:
  • Auto satellite link budget calculation capability and automatic beam switch
  • TV Capabilities: DiSEqC compliant interface with major Set?top boxes for satellite selection
  • Unlimited number of satellite configurations

Standards:
Conforming to Intelsat type?G, Eutelsat type?M and ANATEL* standards (*in progress).
Manufactor: GEOBORDERS Manufactor Website:

www.geoborders.com
