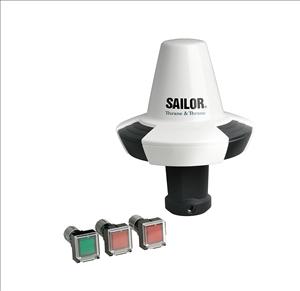

The Thrane & Thrane SAILOR 6120 mini-C SSAS builds on the successful legacy of the SAILOR TT-3000SSA System, which since its introduction in 2004 has proven its worth in real world incidents, time and time again. Like its predecessor, the SAILOR 6120 mini-C SSAS is based around a, self-contained and sealed Inmarsat mini-C terminal, housing both antenna and transceiver. This design approach has proven to be rugged and reliable regardless of vessel type and with the terminal’s 50 channel GPS module and omni-directional antenna, satellite fix and position are ensured even under the most adverse conditions. The SAILOR 6120 mini-C SSAS fully meets and exceeds the requirements listed in IMO MSC. 136(76) and MSC. 144(77) under SOLAS resolution XI-2/6. This stipulates that all vessels over 500 GT are required to be fitted with a Ship Security Alert System (SSAS) to be used under pirate attacks to notify the flag state administration. Alarms are silent, meaning that there is no audio or visual indication on the vessel that an alarm has been activated. The SAILOR 6120 mini-C SSAS is approved by Inmarsat and all major classification societies and national flag state administrators where required.
*YOU SHOULD ASK A QUOTATION when you need to buy particular accessories; for example an antenna and cable so that we can give you the correct cable to connect your antenna to your device with all adapters that you may need.
•Can function as both SSAS and LRIT carrier
•Easy service and update via TCU
•Status LEDs on TCU
•CAN-BUS NMEA2K interface (easy installation)
•Reuse of SAILOR TT-3000 SSA alert and test buttons and cables
•Reuse of old SAILOR 3026 mini-C connection cable with converter (available late 2011)
•TCU provides status information (power, GPS fix, log-in) at a glance
•Built in 50 channel GPS module for increased precision and quick-fix
•LocPoint free web tracking
•Prepared for GLONASS
•General specifications: Meets Inmarsat maritime specifications and SOLAS Resolution XI-2/6
•Inmarsat Type Approval: 4TT095
•TERMINAL UNIT SPECIFICATIONS
•Operating frequencies: Rx Frequency Band: Rx: 1525 - 1545 MHz, Tx Frequency Band: Tx: 1626.5 - 1646.5 MHz
•GPS module: 50 channel
•Terminal interface: NMEA2K DeviceNet Mini-style, Male
•ANTENNA UNIT SPECIFICATIONS
•G/T: -23.7 dBk at 5° elevation
•EIRP: Min. 7 dBW at 5° elevation
•Antenna elevation: -15° to 90°
•Absolute power supply range: 9 - 32 VDC
•Nominal power input: 15 VDC
•Power consumption (typical): Rx: 1.85 W @ 15 VDC, Tx: 22 W @ 15 VDC
•TERMINAL CONTROL UNIT SPECIFICATIONS
•Interface options: CAN interface NMEA2K mini, RS-232, LAN interface RJ45
•SHIP SECURITY ALERT SPECIFICATIONS
•Interface: 2 x SSAS alert buttons with 50 m cable, 1 x Test button with 50 m cable, Up to 6 alert buttons can be connected and 1 test button
•DIMENSIONS AND WEIGHT
•mini-C Terminal: Diameter: 170.5 mm
•Height: 145 mm (without pole mount)
•Weight: 1,1 Kg
•Terminal Control Unit: 239 mm x 172 mm x 54 mm
•Weight: 0,8 Kg
•ThraneLINK is a sophisticated communication protocol that connects the SAILOR products in a network, offering important new opportunities to vessels. It provides facility for remote diagnostics and enables access to all the SAILOR products from a single point for service. This results in optimized maintenance and lower cost of ownership because less time is needed for troubleshooting and service. Installation is made easier as ThraneLINK automatically identifies new products in the system. The uniform protocol is an open standard which provides a future proof solution for all vessels
