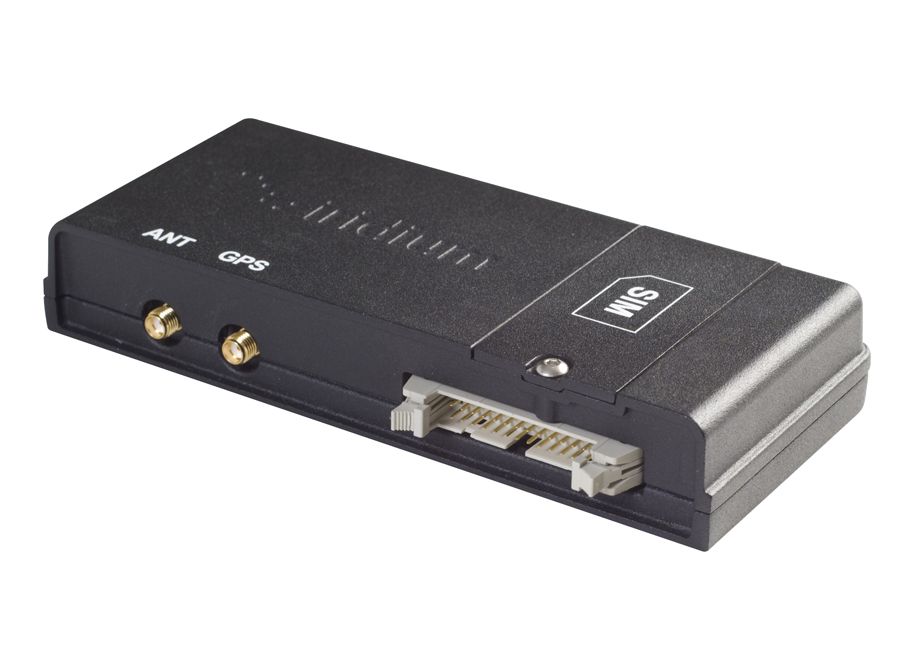

Iridium 9522B LBT Developers Modem

IR-00-102158





Services:
Data

Prix: 1.499,00 USD +TVA

The latest Iridium 9522B L-Band transceiver is a stand-alone module that provides developers a module that can be integrated into application based equipment or dedicated terminal developments.

The 9522B LBT is intended for incorporation into a final Iridium application / product that would supply power to the unit as well as the appropriate data and or voice interface.

Data applications are also supported through an RS-232 serial interface and the 9522B uses the DPL bus for digital voice communications.

Included in the Package:
Iridium 9522B LBT Developers Modem
Prix: 1.499,00 USD +TVA
USD 1798.80 (VAT included)
(USD 1499.00)

*Vous devriez demander UN DEVIS lorsque vous avez besoin d'acheter des accessoires spécifiques: par exemple une antenne et le câble afin que nous puissions vous donner le bon câble pour connecter votre antenne à votre appareil avec tous les adaptateurs que vous pourriez avoir besoin.


Caractéristiques:
. AT command set
. RS 232 Serial interface
. 26-pin IDC connector
. Global coverage
. Continuous circuit switched data
. 4.5 – 32V DC power input
. Cable assembly required
. Fully Certified
Specifications:
Mechanical
  • Length: 6.38 in. (162 mm)
  • Width: 3.16 in. (81 mm)
  • Depth: 1.10 in. (28 mm)
  • Weight (approximate): 0.93 lb (420 g)

Environmental
  • Operating temperature range: –30°C to +70°C
  • Operating humidity range: 25 to 75% RH
  • Storage temperature range: –40°C to +85°C
  • Storage humidity range: = 93% RH

RF Interface
  • Frequency range: 1616 MHz to 1626.5 MHz
  • Duplexing method: TDD (Time Domain Duplex)
  • Oscillator stability: ± 1.5 ppm
  • Input/output impedance: 50 ohms
  • Multiplexing method: TDMA/FDMA
Manufactor: Manufactor Website:

www.iridium.com
Forfait prépayé:

IRIDIUM PRE PAY - NO RECHARGE Promotion Détails

IRIDIUM PREPAY WORLD Détails

IRIDIUM PREPAY LATIN AMERICA Détails

IRIDIUM PREPAY MIDDLE EAST AFRICA (

Tariff plan "Middle East, Africa"

500 minutes voucher with a 12 months validity period.

Within the countries below 500 minutes into all fixed and mobile communications networks are to you at the disposal.

The voucher can only used for SIM cards that are bought in this shop.

There is one vouchers at the tariff plan Middle East, Afca. By recharging this vouchers to an already in this tariff plan activated SIM the given minutes will be added to the remaining minutes, the expiry period is reset to the validity of the recharged voucher.



Calling rates tariff plan Middle East, Africa:

500 minutes, 12 months validity, 30,000 units
outgoing calls per minute originating in Middle East/Africa to text message
Iridium, Mailbox fixed or mobile phones other satelite networks
48 units 60 units 906 units 30 units



All incoming calls are free for the Iridium subscriber (but not for the caller!), except for two-stage dialing calls, which are billed at the outgoing call rate.

outgoing data connections from Africa or the Middle East costs 102 units.

One in this tariff plan activated SIM card cannot be extended. It is not possible to refresh the card with minutes.


Countrylist Africa:

Algeria, Angola, Benin, Botswana, Burkina Faso, Burundi, Cameroon, Cape Verde, Central African Republic, Chad, Congo, Dem Republic of Congo, Djibouti, Egypt, Equatorial Guinea, Eritrea, Ethiopia, Gabon, Gambia, Ghana, Guinea, Guinea Bissau, Juan de Nova Island, Kenya, Lesotho, Liberia, Madagascar, Malawi, Mali, Mauritania, Mauritius, Mayotte, Morocco, Mozambique, Namibia, Niger, Senegal, Sierra Leone, Somalia, South Africa, Tanzania, Tunisia, Uganda, Zambia, Zimbabwe



Countylist Middle East:

Cyprus, Jordan, Kuwait, Lebanon, Oman, Saudi-Arabia, Turkey, United Arab Emirate.



)Détails

IRIDIUM PREPAY NORTHERN LIGHTS Détails

Plan de services postpayés taux:

IRIDIUM .ADVANCE 100 MINUTES PLAN Détails

IRIDIUM .POWER 250 MINUTES PLAN Détails

IRIDIUM .SEASONAL 10 MINUTES PLAN Détails

IRIDIUM .STARTER 25 MINUTES PLAN Détails

IRIDIUM EMERGENCY (For Recreational usage)Détails

IRIDIUM SIM CARD Register Only Used With SBD Détails

IRIDIUM WORLD DATA BASIC Détails

Nessun Risultato Trovato

DESCRIPTION TYPE
IRIDIUM 9522B - Brochure English Brochure Download
Nessun Risultato Trovato
TITLE SUMMARY RISOLUTION
Iridium- Direct Internet and PPP port blocking

As from 1st June 2005, Iridium Satellite LLC will be blocking many TCP/UDP ports in an effort to help combat against malicious programs and viruses. This change to the Iridium service will not affect the majority of users of applications such as Email, Web-browsing or FTP for example. However, specalist equipment or applications may use uncommon ports which will cease to work.



 Read Full Article
