The GSP-1720 satellite data and voice module enables full two-way data and voice capability, allowing the development of new and creative tracking and monitor & control applications to full-featured fixed telephone service for remote areas.
For Supervisory Control and Data Acquisition (SCADA) applications, the GSP-1720 Satellite Data/Voice Module (SDVM) can provide either Direct or Dial-up Internet as well as asynchronous computer to computer connectivity. These options provide communications with land and marine-based equipment, while complementing mobile and stationary field solutions.
Mobile or stationary, the GSP-1720 helps you monitor, control or track assets remotely through the Globalstar satellite network – affordably and with low-power requirements.
Designed for multiple applications, the GSP-1720 Module offers a flexible solution for the Original Equipment Manufacturer (OEM), as well as providing a developer's kit for accelerated time to market. GSP1720 Brochure
Included in the Package:

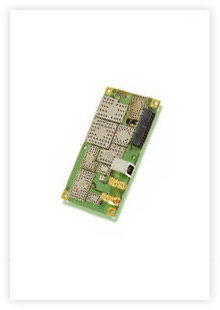

Globalstar GSP-1720 satellite data and voice module (Board Only)
*YOU SHOULD ASK A QUOTATION when you need to buy particular accessories; for example an antenna and cable so that we can give you the correct cable to connect your antenna to your device with all adapters that you may need.
Satellite Data/Voice Module Features
Globalstar Satellite Data Service
Globalstar Satellite Voice Service
Direct Internet or Direct Dial-up Circuit Switched Data
9.6 kbps full duplex service (express data available up to 19 kbps)
Utilizes standard and enhanced “Hayes Modem” AT commands
Compatible with Windows 98/2000/XP/NT/ME/Vista
Dial-up networking, Asynchronous data communications static IP
Short Messaging Service (SMS): 35 character incoming
Crystal clear voice quality: Superior CDMA digital satellite quality
Automatic system select: Just apply power to the unit and your Globalstar module will automatically seek out the Globalstar network.
DC Input Voltage +4.7 V to +5.1 V (7.0 V optional for active antenna)
Power Consumption Estimates @ 12V Input:
User Ports 22 pin Molex connector with pin-outs for data port, auxillary port (control/NEMA), audio and power.
USB-B connector for data and diagnostics connectivity. Module Antenna Connectors: TX SMA female, RX SMA Male Antenna Connectors: Passive: TX SMA Female, RX SMA Female
Active: TX SMA male, RX SMA female, Diagnostic Monitor and Software Upgrade USB-B Connector
Module Dimensions: 4.7 in (119 mm) x 2.4 in (65 mm) x 0.59 in (15 mm) Module Weight: less than 2.15 ounces (60 grams) Certificaiton FCC, ETSI, IC Module Environmental Conditionsn Operating: -22 to +140ºF (-30 to +60ºC) Storage: -40 to +185ºF (-40 to +85ºC)
Coverage may vary. Specifications subject to change without notice.
