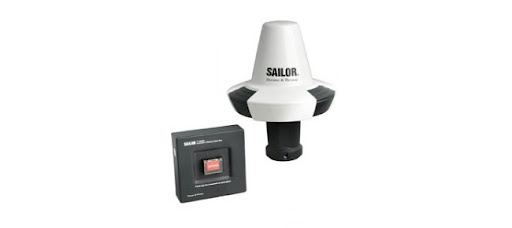

The Thrane & Thrane SAILOR 6150 Mini-C Distress is the most sophisticated, fully approved dedicated Vessel Management System (VMS) and tracking terminal available on the market. In addition to offering full VMS and tracking functionality, it also offers Non-SOLAS distress functionality and the reception of EGC messages and SafetyNet/FleetNet, which provides a significant boost to the safety of your vessel and crew. The system is a single, self-contained and sealed terminal, housing both antenna and transceiver. This design approach has proven to be rugged and reliable, especially for use aboard the harsh environment of a professional fishing and offshore vessel and with the terminal’s 50 channel GPS module and omni-directional antenna, satellite fix and position are ensured even under the most adverse conditions. The SAILOR 6150 mini-C Distress features the trusted Inmarsat-C maritime Non-SOLAS distress function. This has long been an integral part of safety at sea as GMDSS. No matter where you go or how wild the sea, pressing the distress button activates a high priority distress message relayed automatically to the nearest MRCC. The MRCC will respond with rescue coordination activities including EGC SafetyNet messages to all nearby vessels so assistance may be provided.
Included in the Package:
SAILOR mini-C 6150 Non Solas Distress System
*YOU SHOULD ASK A QUOTATION when you need to buy particular accessories; for example an antenna and cable so that we can give you the correct cable to connect your antenna to your device with all adapters that you may need.
•Vessel Monitoring System (VMS) – The SAILOR 6150 mini-C Distress provides a number of advanced tracking functions. With GeoFencing you can divide relevant sea areas into a range of geographical zones meaning you can define special areas of interest where specific reporting intervals come into effect and also be alerted when your vessel is out of its designated zone.
•Two-Way Messaging – With the SAILOR 6150 mini-C Distress it is easy to send various types of text messages. Simply connect a PC to the terminal and you are ready to receive Enhanced Group Calls or send catch reports at all times. You can also exchange e-mails, fax, SMS, and special messages to other Inmarsat-C users.
•Free Enhanced Group Calling (EGC) – EGC can improve safety and at sea, it can include severe weather warnings, drifting goods notifications and distress information about nearby ships or general information from flag authorities on shore (SafetyNet/FleetNet). EGC reception, configuration are done easily via the free easyMail PC program or Message Terminal from Thrane & Thrane.
•CAN-BUS interface (easy installation)
•GLONASS option opening new markets.
•Reuse of SAILOR 3042E Alarm Panel on the SAILOR 6150 Distress System
•TCU provides status information (power, GPS fix, log-in)
•Built in 50 channel GPS module for increased precision
•Increased zone / geo-fencing capabilities
•General specifications: Meets Inmarsat maritime specifications and SOLAS Resolution XI-2/6
•Inmarsat Type Approval: 4TT098
•TERMINAL UNIT SPECIFICATIONS
•Operating frequencies: Rx Frequency Band: Rx: 1525 - 1545 MHz, Tx Frequency Band: Tx: 1626.5 - 1646.5 MHz
•GPS module: 50 channel
•Terminal interface: NMEA2K DeviceNet Mini-style, Male
•ANTENNA UNIT SPECIFICATIONS
•G/T: -23.7 dBk at 5° elevation
•EIRP: Min. 7 dBW at 5° elevation
•Antenna elevation: -15° to 90°
•Absolute power supply range: 9 - 32 VDC
•Nominal power input: 15 VDC
•Power consumption (typical): Rx: 1.85 W @ 15 VDC, Tx: 22 W @ 15 VDC
•TERMINAL CONTROL UNIT SPECIFICATIONS
•Interface options: CAN interface NMEA2K mini, RS-232, LAN interface RJ45
•DIMENSIONS AND WEIGHT
•Mini-C Terminal Diameter: 170.5 mm
•Height: 145 mm (without pole mount)
•Weight: 1,1 Kg
•Terminal Control Unit: 239 mm x 172 mm x 54 mm
•Weight: 0,8 Kg
•ThraneLINK is a sophisticated communication protocol that connects the SAILOR products in a network, offering important new opportunities to vessels. It provides facility for remote diagnostics and enables access to all the SAILOR products from a single point for service. This results in optimized maintenance and lower cost of ownership because less time is needed for troubleshooting and service. Installation is made easier as ThraneLINK automatically identifies new products in the system. The uniform protocol is an open standard which provides a future proof solution for all vessels
